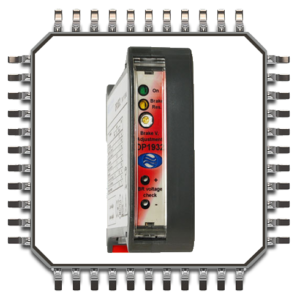

DP Series Unregulated Power Supply with braking resistor control IN:80..170Vac OUT:110..250Vdc 12A

R3,607.16

NB: Minimum order quantity is 2 units and if a smaller quantity is required please contact sales@industratech.co.za for your prices.

  • Input voltage: From 80Vac up to 170Vac single phase or three phase
  • Output Voltage: Da 110Vdc a 250Vdc
  • Output Current: 12Arms with three phase input
    6Arms with single phase input
  • Braking Resistor Threshold Voltage: Adjustable from 130Vdc up to 250Vdc
  • Connections: By functional removable terminal block. Section of cable up to AWG14
  • Size: 100(H) x 35(L) x 119(W) mm
Add to basket

CNV Series Industrial Isolated RS232 to RS485 Serial Converter DIN Mount

R2,924.87

NB: Minimum order quantity is 2 units and if a smaller quantity is required please contact sales@industratech.co.za for your prices.

  • Power Supply Voltage: From 10Vdc up to 28Vdc
  • Supported baud rates: Automatic, 110, 300, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400
  • Parity type supported: Automatic, Nessuna, Pari, Dispari
  • Stop Bit number supported: Automatic, 1bit, 2bit
  • Data flow control (Rx / Tx): Automaticor manual by one of the following control signals: CTS, DSR, DCD, RI, RTS, DTR
  • Special Features: Yes/No Null-modem configuration, Yes/No Echo of characters transmitted
  • Termination resistor: Yes, configurable
  • Bias resistors: Yes, configurable
  • Led indicator: Power Presence, Data Reception, Data Transmission
  • DTE RS232 port connector: DB-9 female
  • DCE RS232 port connector: DB-9 male
  • Power supply connector: 2-pins removable terminal block, Section of cable up to AWG14
  • RS485 connector: 3-pins removable terminal block, Section of cable up to AWG14

Size: 100(H) x 22.7(L) x 119(W) mm

Add to basket

CNV Series Industrial Isolated USB to RS232 Converter DIN Mount

R2,871.00

NB: Minimum order quantity is 2 units and if a smaller quantity is required please contact sales@industratech.co.za for your prices.

  • Supported OS: Windows 98, SE, Me, 2000, XP, Vista, Windows 7 32bit and 64bit, Linux (kernel version 2.4.0 or higher)
  • Power Supply: Drawn from the USB port
  • Supported baud rates: 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 14400, 19200, 38400, 57600, 115200, 230400
  • Supported data format: 7bit, 8bit
  • Supported parity: None, Even, Odd, Mark, Space
  • Supported stop bits: 1bit, 2bit
  • Flow control: None, Xon / Xoff, Hardware
  • Led indicator:Power Presence, Data Reception, Data Transmission
  • DTE RS232 port connector: DB-9 female
  • DCE RS232 port connector: DB-9 male
  • USB connector: Type B
  • Size: 100(H) x 22.7(L) x 119(W) mm
Add to basket

CNV Series Industrial Isolated RS232 Extender

R3,194.19

NB: Minimum order quantity is 2 units and if a smaller quantity is required please contact sales@industratech.co.za for your prices.

  • Power Supply Voltage: From 10Vdc up to 28Vdc
  • Remoted signals: All (RX, TX, RTS, CTS, DSR, DCD, DTR, RI)
  • Maximum distance: 500m
  • Maximum speed: 57600baud
  • Led indicator: Power Presence, Data Reception, Data Transmission
  • DTE RS232 port connector: DB-9 female
  • DCE RS232 port connector: DB-9 male
  • Size: 100(H) x 22.7(L) x 119(W) mm
Add to basket

CNV Series Industrial Isolated RS232 Extender over USB DIN Mount

R3,122.37

NB: Minimum order quantity is 2 units and if a smaller quantity is required please contact sales@industratech.co.za for your prices.

  • Supported OS: Windows 98, SE, Me, 2000, XP, Vista, Windows 7 32bit and 64bit, Linux (kernel version 2.4.0 or higher)
  • Power Supply: Drawn from the USB port
  • Remoted Signals: All (RX, TX, RTS, CTS, DSR, DCD, DTR, RI)
  • Maximum distance: 500m
  • Supported baud rates: 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 14400, 19200, 38400, 57600
  • Led indicator:Power Presence, Data Reception, Data Transmission
  • USB connector: Type B
  • Size: 100(H) x 22.7(L) x 119(W) mm
Add to basket

CNV Series Industrial Isolated USB to RS485 Converter DIN Mount

R3,283.97

NB: Minimum order quantity is 2 units and if a smaller quantity is required please contact sales@industratech.co.za for your prices.

  • Supported OS: Windows 98, SE, Me, 2000, XP, Vista, Windows 7 32bit and 64bit, Linux (kernel version 2.4.0 or higher)
  • Power Supply: Drawn from the USB port
  • Supported baud rates: Automatic, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 14400, 19200, 38400, 57600, 115200, 230400, 460800, 921600
  • Supported data format: 7bit, 8bit
  • Supported parity: None, Even, Odd, Mark, Space
  • Supported stop bits: 1bit, 2bit
  • Data flow control: Automatic, manual by RTS or DTR
  • Special Features: Yes/No Null-modem configuration, Yes/No Echo of characters transmitted
  • Termination resistor: Yes, configurable
  • Bias resistors: Yes, configurable
  • Led indicator: Power Presence, Data Reception, Data Transmission
  • RS485 connector: 3-pins removable terminal block Section of cable up to AWG14
  • USB connector:  Type B
  • Size: 100(H) x 22.7(L) x 119(W) mm
Add to basket
