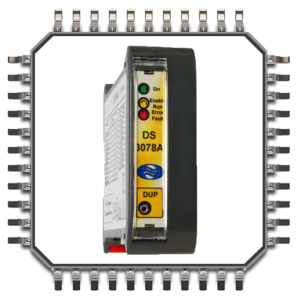

DS Series Programmable 65VAC 6Arms DIN Mount Micro Stepper Drive
R5,423.18

***NB: Minimum order quantity is 2 units and if a smaller quantity is required please contact sales@industratech.co.za for your prices.***

**Power Supply Voltage**: From 20Vac up to 65Vac

**Phase Current**: From 2Arms up to 6Arms in increments of 0.1Arms

**Control Mode**: Fully user programmable via free tool UDP Commander

**Performance:**Up to 3000rpm with 1/128 of step resolution

**Function Blocks**: Assignment, Jump and subroutine call, conditional and unconditional, Wait for Event, Math 32bit, Logical operations (OR, AND, XOR, and SHIFT) Waiting

**User Variables:**Freely declarable with 1byte, 2byte, 3byte and 4byte size.

**Special Features:**High-speed counter also usable for Encoder, Quote captures on the transition of one or more inputs, Timer, Automatic current reduction

**Digital Inputs**: 4 optoisolated: DI0, DI1, DI2, DI3 freely usable, Operating from 3V up to 28V at constant current, Each one NPN, PNP or Line Drive compatible

**Digital Outputs:** 2 optoisolated: FAULT, Operating up to 30V 50mA, Each one NPN or PNP compatible.

**Analog Inputs:**2 converted to 11bit: AI0, AI1, Operating from -10V up to 10V, Also usable as digital inputs.

**Analog Outputs:**1 converted to 10bit: AO0, Operating from 0V up to 10V, Current up to 10mA

**Protections, Alarms and Diagnostics:**Over and under voltage, thermal, Phase Motor interrupted, short circuit phase to phase, phase to ground, phase-supply, Univocal indication for each anomaly

**Connections:**By functional removable terminal block. Section of cable up to AWG14

**Size:**100(H) x 35(L) x 119(W) mm

Add to basket

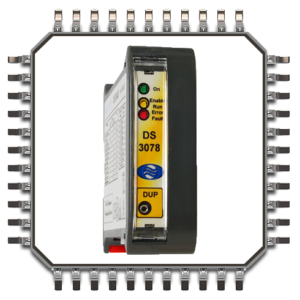

DS Series Programmable 90VDC 10Arms DIN Mount Micro Stepper Drive
R5,443.70

***NB: Minimum order quantity is 2 units and if a smaller quantity is required please contact sales@industratech.co.za for your prices.***

**Power Supply Voltage**: From 24Vdc up to 90Vdc

**Phase Current**: From 4Arms up to 10Arms in increments of 0.1Arms

**Control Mode**: Fully user programmable via free tool UDP Commander

**Performance:**Up to 3000rpm with 1/128 of step resolution

**Function Blocks**: Assignment, Jump and subroutine call, conditional and unconditional, Wait for Event, Math 32bit, Logical operations (OR, AND, XOR, and SHIFT) Waiting

**User Variables:**Freely declarable with 1byte, 2byte, 3byte and 4byte size.

**Special Features:**High-speed counter also usable for Encoder, Quote captures on the transition of one or more inputs, Timer, Automatic current reduction

**Digital Inputs**: 4 optoisolated: DI0, DI1, DI2, DI3 freely usable, Operating from 3V up to 28V at constant current, Each one NPN, PNP or Line Drive compatible

**Digital Outputs:** 2 optoisolated: FAULT, Operating up to 30V 50mA, Each one NPN or PNP compatible.

**Analog Inputs:**2 converted to 11bit: AI0, AI1, Operating from -10V up to 10V, Also usable as digital inputs.

**Analog Outputs:**1 converted to 10bit: AO0, Operating from 0V up to 10V, Current up to 10mA

**Protections, Alarms and Diagnostics:**Over and under voltage, thermal, Phase Motor interrupted, short circuit phase to phase, phase to ground, phase-supply, Univocal indication for each anomaly

**Connections:**By functional removable terminal block. Section of cable up to AWG14

**Size:**100(H) x 35(L) x 119(W) mm

Add to basket

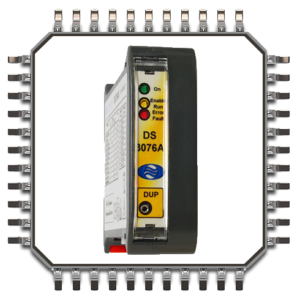

DS Series Programmable 65VAC 10Arms DIN Mount Micro Stepper Drive
R6,243.98

***NB: Minimum order quantity is 2 units and if a smaller quantity is required please contact sales@industratech.co.za for your prices.***

**Power Supply Voltage**: From 20Vac up to 65Vac

**Phase Current**: From 4Arms up to 10Arms in increments of 0.1Arms

**Control Mode**: Fully user programmable via free tool UDP Commander

**Performance:**Up to 3000rpm with 1/128 of step resolution

**Function Blocks**: Assignment, Jump and subroutine call, conditional and unconditional, Wait for Event, Math 32bit, Logical operations (OR, AND, XOR, and SHIFT) Waiting

**User Variables:**Freely declarable with 1byte, 2byte, 3byte and 4byte size.

**Special Features:**High-speed counter also usable for Encoder, Quote captures on the transition of one or more inputs, Timer, Automatic current reduction

**Digital Inputs**: 4 optoisolated: DI0, DI1, DI2, DI3 freely usable, Operating from 3V up to 28V at constant current, Each one NPN, PNP or Line Drive compatible

**Digital Outputs:** 2 optoisolated: FAULT, Operating up to 30V 50mA, Each one NPN or PNP compatible.

**Analog Inputs:**2 converted to 11bit: AI0, AI1, Operating from -10V up to 10V, Also usable as digital inputs.

**Analog Outputs:**1 converted to 10bit: AO0, Operating from 0V up to 10V, Current up to 10mA

**Protections, Alarms and Diagnostics:**Over and under voltage, thermal, Phase Motor interrupted, short circuit phase to phase, phase to ground, phase-supply, Univocal indication for each anomaly

**Connections:**By functional removable terminal block. Section of cable up to AWG14

**Size:**100(H) x 35(L) x 119(W) mm

Add to basket

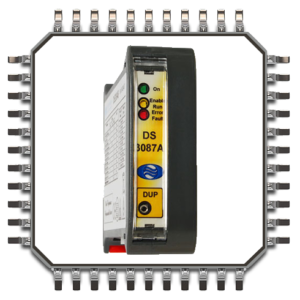

DS Series Programmable 160VDC 4Arms DIN Mount Micro Stepper Drive
R5,320.58

***NB: Minimum order quantity is 2 units and if a smaller quantity is required please contact sales@industratech.co.za for your prices.***

**Power Supply Voltage**: From 45Vdc up to 160Vdc

**Phase Current**: From 2Arms up to 4Arms in increments of 0.1Arms

**Control Mode**: Fully user programmable via free tool UDP Commander

**Performance:**Up to 3000rpm with 1/128 of step resolution

**Function Blocks**: Assignment, Jump and subroutine call, conditional and unconditional, Wait for Event, Math 32bit, Logical operations (OR, AND, XOR, and SHIFT) Waiting

**User Variables:**Freely declarable with 1byte, 2byte, 3byte and 4byte size.

**Special Features:**High-speed counter also usable for Encoder, Quote captures on the transition of one or more inputs, Timer, Automatic current reduction

**Digital Inputs**: 4 optoisolated: DI0, DI1, DI2, DI3 freely usable, Operating from 3V up to 28V at constant current, Each one NPN, PNP or Line Drive compatible

**Digital Outputs:** 2 optoisolated: FAULT, Operating up to 30V 50mA, Each one NPN or PNP compatible.

**Analog Inputs:**2 converted to 11bit: AI0, AI1, Operating from -10V up to 10V, Also usable as digital inputs.

**Analog Outputs:**1 converted to 10bit: AO0, Operating from 0V up to 10V, Current up to 10mA

**Protections, Alarms and Diagnostics:**Over and under voltage, thermal, Phase Motor interrupted, short circuit phase to phase, phase to ground, phase-supply, Univocal indication for each anomaly

**Connections:**By functional removable terminal block. Section of cable up to AWG14

**Size:**100(H) x 35(L) x 119(W) mm

Add to basket

DS Series Programmable 115VAC 4Arms DIN Mount Micro Stepper Drive
R6,018.26

***NB: Minimum order quantity is 2 units and if a smaller quantity is required please contact sales@industratech.co.za for your prices.***

**Power Supply Voltage**: From 35Vac up to 115Vac

**Phase Current**: From 2Arms up to 4Arms in increments of 0.1Arms

**Control Mode**: Fully user programmable via free tool UDP Commander

**Performance:**Up to 3000rpm with 1/128 of step resolution

**Function Blocks**: Assignment, Jump and subroutine call, conditional and unconditional, Wait for Event, Math 32bit, Logical operations (OR, AND, XOR, and SHIFT) Waiting

**User Variables:**Freely declarable with 1byte, 2byte, 3byte and 4byte size.

**Special Features:**High-speed counter also usable for Encoder, Quote captures on the transition of one or more inputs, Timer, Automatic current reduction

**Digital Inputs**: 4 optoisolated: DI0, DI1, DI2, DI3 freely usable, Operating from 3V up to 28V at constant current, Each one NPN, PNP or Line Drive compatible

**Digital Outputs:** 2 optoisolated: FAULT, Operating up to 30V 50mA, Each one NPN or PNP compatible.

**Analog Inputs:**2 converted to 11bit: AI0, AI1, Operating from -10V up to 10V, Also usable as digital inputs.

**Analog Outputs:**1 converted to 10bit: AO0, Operating from 0V up to 10V, Current up to 10mA

**Protections, Alarms and Diagnostics:**Over and under voltage, thermal, Phase Motor interrupted, short circuit phase to phase, phase to ground, phase-supply, Univocal indication for each anomaly

**Connections:**By functional removable terminal block. Section of cable up to AWG14

**Size:**100(H) x 35(L) x 119(W) mm

Add to basket

DS Series Programmable 115VAC 8.5Arms DIN Mount Micro Stepper Drive
R7,044.26

***NB: Minimum order quantity is 2 units and if a smaller quantity is required please contact sales@industratech.co.za for your prices.***

**Power Supply Voltage**: From 35Vac up to 115Vac

**Phase Current**: From 4Arms up to 8.5Arms in increments of 0.1Arms

**Control Mode**: Fully user programmable via free tool UDP Commander

**Performance:**Up to 3000rpm with 1/128 of step resolution

**Function Blocks**: Assignment, Jump and subroutine call, conditional and unconditional, Wait for Event, Math 32bit, Logical operations (OR, AND, XOR, and SHIFT) Waiting

**User Variables:**Freely declarable with 1byte, 2byte, 3byte and 4byte size.

**Special Features:**High-speed counter also usable for Encoder, Quote captures on the transition of one or more inputs, Timer, Automatic current reduction

**Digital Inputs**: 4 optoisolated: DI0, DI1, DI2, DI3 freely usable, Operating from 3V up to 28V at constant current, Each one NPN, PNP or Line Drive compatible

**Digital Outputs:** 2 optoisolated: FAULT, Operating up to 30V 50mA, Each one NPN or PNP compatible.

**Analog Inputs:**2 converted to 11bit: AI0, AI1, Operating from -10V up to 10V, Also usable as digital inputs.

**Analog Outputs:**1 converted to 10bit: AO0, Operating from 0V up to 10V, Current up to 10mA

**Protections, Alarms and Diagnostics:**Over and under voltage, thermal, Phase Motor interrupted, short circuit phase to phase, phase to ground, phase-supply, Univocal indication for each anomaly

**Connections:**By functional removable terminal block. Section of cable up to AWG14

**Size:**100(H) x 35(L) x 119(W) mm

Add to basket

DS Series Programmable 240VDC 10Arms DIN Mount Micro Stepper Drive
R7,249.46

***NB: Minimum order quantity is 2 units and if a smaller quantity is required please contact sales@industratech.co.za for your prices.***

**Power Supply Voltage**: From 45Vdc up to 240Vdc

**Phase Current**: From 4Arms up to 10Arms in increments of 0.1Arms

**Control Mode**: Fully user programmable via free tool UDP Commander

**Performance:**Up to 3000rpm with 1/128 of step resolution

**Function Blocks**: Assignment, Jump and subroutine call, conditional and unconditional, Wait for Event, Math 32bit, Logical operations (OR, AND, XOR, and SHIFT) Waiting

**User Variables:**Freely declarable with 1byte, 2byte, 3byte and 4byte size.

**Special Features:**High-speed counter also usable for Encoder, Quote captures on the transition of one or more inputs, Timer, Automatic current reduction

**Digital Inputs**: 4 optoisolated: DI0, DI1, DI2, DI3 freely usable, Operating from 3V up to 28V at constant current, Each one NPN, PNP or Line Drive compatible

**Digital Outputs:** 2 optoisolated: FAULT, Operating up to 30V 50mA, Each one NPN or PNP compatible.

**Analog Inputs:**2 converted to 11bit: AI0, AI1, Operating from -10V up to 10V, Also usable as digital inputs.

**Analog Outputs:**1 converted to 10bit: AO0, Operating from 0V up to 10V, Current up to 10mA

**Protections, Alarms and Diagnostics:**Over and under voltage, thermal, Phase Motor interrupted, short circuit phase to phase, phase to ground, phase-supply, Univocal indication for each anomaly

**Connections:**By functional removable terminal block. Section of cable up to AWG14

**Size:**100(H) x 35(L) x 119(W) mm

Add to basket

DS Series Programmable + Fieldbus 50VDC 1.4Arms DIN Mount Micro Stepper Drive
R3,904.70

***NB: Minimum order quantity is 2 units and if a smaller quantity is required please contact sales@industratech.co.za for your prices.***

**Selection of:** Modbus-RTU fieldbus and communication interface **RS485** or Modbus-RTU fieldbus and communication interface **RS232** or Modbus-RTU fieldbus and communication interface **USB**

**Power Supply Voltage**: From 18Vdc up to 50Vdc

**Phase Current**: From 0.3Arms up to 1.4Arms in increments of 0.1Arms

**Control Mode**: Fieldbus and/or internal user program (development by free tool UDP Commander)

**Performance:**Up to 3000rpm with 1/128 of step resolution

**Function Blocks**: Assignment, Jump and subroutine call, conditional and unconditional, Wait for Event, Math 32bit, Logical operations (OR, AND, XOR, and SHIFT) Waiting

**User Variables:**Freely declarable with 1byte, 2byte, 3byte and 4byte size.

**Special Features:**Reading and Writing of user variables via fieldbus, High-speed counter also usable for Encoder, Quote captures on the transition of one or more inputs, Timer, Automatic current reduction

**Digital Inputs**: 4 optoisolated: DI0, DI1, DI2, DI3 freely usable, Operating from 3V up to 28V at constant current, Each one NPN, PNP or Line Drive compatible

**Digital Outputs:** 2 optoisolated: FAULT, Operating up to 30V 50mA, Each one NPN or PNP compatible.

**Analog Inputs:**2 converted to 11bit: AI0, AI1, Operating from -10V up to 10V, Also usable as digital inputs.

**Analog Outputs:**1 converted to 10bit: AO0, Operating from 0V up to 10V, Current up to 10mA

**Protections, Alarms and Diagnostics:**Over and under voltage, thermal, Phase Motor interrupted, short circuit phase to phase, phase to ground, phase-supply, Univocal indication for each anomaly

**Connections:**By functional removable terminal block. Section of cable up to AWG14

**Size:**100(H) x 22.7(L) x 119(W) mm

Add to basket

DS Series Programmable + Fieldbus 36VAC 1.4Arms DIN Mount Micro Stepper Drive
R4,130.42

***NB: Minimum order quantity is 2 units and if a smaller quantity is required please contact sales@industratech.co.za for your prices.***

**Selection of:** Modbus-RTU fieldbus and communication interface **RS485** or Modbus-RTU fieldbus and communication interface **RS232** or Modbus-RTU fieldbus and communication interface **USB**

**Power Supply Voltage**: From 16Vac up to 36Vac

**Phase Current**: From 0.3Arms up to 1.4Arms in increments of 0.1Arms

**Control Mode**: Fieldbus and/or internal user program (development by free tool UDP Commander)

**Performance:**Up to 3000rpm with 1/128 of step resolution

**Function Blocks**: Assignment, Jump and subroutine call, conditional and unconditional, Wait for Event, Math 32bit, Logical operations (OR, AND, XOR, and SHIFT) Waiting

**User Variables:**Freely declarable with 1byte, 2byte, 3byte and 4byte size.

**Special Features:**Reading and Writing of user variables via fieldbus, High-speed counter also usable for Encoder, Quote captures on the transition of one or more inputs, Timer, Automatic current reduction

**Digital Inputs**: 4 optoisolated: DI0, DI1, DI2, DI3 freely usable, Operating from 3V up to 28V at constant current, Each one NPN, PNP or Line Drive compatible

**Digital Outputs:** 2 optoisolated: FAULT, Operating up to 30V 50mA, Each one NPN or PNP compatible.

**Analog Inputs:**2 converted to 11bit: AI0, AI1, Operating from -10V up to 10V, Also usable as digital inputs.

**Analog Outputs:**1 converted to 10bit: AO0, Operating from 0V up to 10V, Current up to 10mA

**Protections, Alarms and Diagnostics:**Over and under voltage, thermal, Phase Motor interrupted,short circuit phase to phase, phase to ground, phase-supply, Univocal indication for each anomaly

**Connections:**By functional removable terminal block. Section of cable up to AWG14

**Size:**100(H) x 22.7(L) x 119(W) mm

Add to basket

DS Series Programmable + Fieldbus 50VDC 4Arms DIN Mount Micro Stepper Drive
R4,335.62

***NB: Minimum order quantity is 2 units and if a smaller quantity is required please contact sales@industratech.co.za for your prices.***

**Selection of:** Modbus-RTU fieldbus and communication interface **RS485** or Modbus-RTU fieldbus and communication interface **RS232** or Modbus-RTU fieldbus and communication interface **USB**

**Power Supply Voltage**: From 20Vdc up to 50Vdc

**Phase Current**: From 1Arms up to 4Arms in increments of 0.1Arms

**Control Mode**: Fieldbus and/or internal user program (development by free tool UDP Commander)

**Performance:**Up to 3000rpm with 1/128 of step resolution

**Function Blocks**: Assignment, Jump and subroutine call, conditional and unconditional, Wait for Event, Math 32bit, Logical operations (OR, AND, XOR, and SHIFT) Waiting

**User Variables:**Freely declarable with 1byte, 2byte, 3byte and 4byte size.

**Special Features:**Reading and Writing of user variables via fieldbus, High-speed counter also usable for Encoder, Quote captures on the transition of one or more inputs, Timer, Automatic current reduction

**Digital Inputs**: 4 optoisolated: DI0, DI1, DI2, DI3 freely usable, Operating from 3V up to 28V at constant current, Each one NPN, PNP or Line Drive compatible

**Digital Outputs:** 2 optoisolated: FAULT, Operating up to 30V 50mA, Each one NPN or PNP compatible.

**Analog Inputs:**2 converted to 11bit: AI0, AI1, Operating from -10V up to 10V, Also usable as digital inputs.

**Analog Outputs:**1 converted to 10bit: AO0, Operating from 0V up to 10V, Current up to 10mA

**Protections, Alarms and Diagnostics:**Over and under voltage, thermal, Phase Motor interrupted,short circuit phase to phase, phase to ground, phase-supply, Univocal indication for each anomaly

**Connections:**By functional removable terminal block. Section of cable up to AWG14

**Size:**100(H) x 22.7(L) x 119(W) mm

Add to basket

DS Series Programmable + Fieldbus 36VAC 4Arms DIN Mount Micro Stepper Drive
R4,561.34

***NB: Minimum order quantity is 2 units and if a smaller quantity is required please contact sales@industratech.co.za for your prices.***

**Selection of:** Modbus-RTU fieldbus and communication interface **RS485** or Modbus-RTU fieldbus and communication interface **RS232** or Modbus-RTU fieldbus and communication interface **USB**

**Power Supply Voltage**: From 18Vac up to 36Vac

**Phase Current**: From 1Arms up to 4Arms in increments of 0.1Arms

**Control Mode**: Fieldbus and/or internal user program (development by free tool UDP Commander)

**Performance:**Up to 3000rpm with 1/128 of step resolution

**Function Blocks**: Assignment, Jump and subroutine call, conditional and unconditional, Wait for Event, Math 32bit, Logical operations (OR, AND, XOR, and SHIFT) Waiting

**User Variables:**Freely declarable with 1byte, 2byte, 3byte and 4byte size.

**Special Features:**Reading and Writing of user variables via fieldbus, High-speed counter also usable for Encoder, Quote captures on the transition of one or more inputs, Timer, Automatic current reduction

**Digital Inputs**: 4 optoisolated: DI0, DI1, DI2, DI3 freely usable, Operating from 3V up to 28V at constant current, Each one NPN, PNP or Line Drive compatible

**Digital Outputs:** 2 optoisolated: FAULT, Operating up to 30V 50mA, Each one NPN or PNP compatible.

**Analog Inputs:**2 converted to 11bit: AI0, AI1, Operating from -10V up to 10V, Also usable as digital inputs.

**Analog Outputs:**1 converted to 10bit: AO0, Operating from 0V up to 10V, Current up to 10mA

**Protections, Alarms and Diagnostics:**Over and under voltage, thermal, Phase Motor interrupted,short circuit phase to phase, phase to ground, phase-supply, Univocal indication for each anomaly

**Connections:**By functional removable terminal block. Section of cable up to AWG14

**Size:**100(H) x 35(L) x 119(W) mm

Add to basket

DS Series Programmable + Fieldbus 50VDC 8Arms DIN Mount Micro Stepper Drive
R5,217.98

***NB: Minimum order quantity is 2 units and if a smaller quantity is required please contact sales@industratech.co.za for your prices.***

**Selection of:** Modbus-RTU fieldbus and communication interface **RS485** or Modbus-RTU fieldbus and communication interface **RS232** or Modbus-RTU fieldbus and communication interface **USB**

**Power Supply Voltage**: From 20Vdc up to 50Vdc

**Phase Current**: From 3Arms up to 8Arms in increments of 0.1Arms

**Control Mode**: Fieldbus and/or internal user program (development by free tool UDP Commander)

**Performance:** Up to 3000rpm with 1/128 of step resolution

**Function Blocks**: Assignment, Jump and subroutine call, conditional and unconditional, Wait for Event, Math 32bit, Logical operations (OR, AND, XOR, and SHIFT) Waiting

**User Variables:**Freely declarable with 1byte, 2byte, 3byte and 4byte size.

**Special Features:**Reading and Writing of user variables via fieldbus, High-speed counter also usable for Encoder, Quote captures on the transition of one or more inputs, Timer, Automatic current reduction

**Digital Inputs**: 4 optoisolated: DI0, DI1, DI2, DI3 freely usable, Operating from 3V up to 28V at constant current, Each one NPN, PNP or Line Drive compatible

**Digital Outputs:** 2 optoisolated: FAULT, Operating up to 30V 50mA, Each one NPN or PNP compatible.

**Analog Inputs:**2 converted to 11bit: AI0, AI1, Operating from -10V up to 10V, Also usable as digital inputs.

**Analog Outputs:**1 converted to 10bit: AO0, Operating from 0V up to 10V, Current up to 10mA

**Protections, Alarms and Diagnostics:**Over and under voltage, thermal, Phase Motor interrupted,short circuit phase to phase, phase to ground, phase-supply, Univocal indication for each anomaly

**Connections:**By functional removable terminal block. Section of cable up to AWG14

**Size:**100(H) x 35(L) x 119(W) mm

Add to basket

DS Series Programmable + Fieldbus 36VAC 8Arms DIN Mount Micro Stepper Drive
R5,772.02

***NB: Minimum order quantity is 2 units and if a smaller quantity is required please contact sales@industratech.co.za for your prices.***

**Selection of:** Modbus-RTU fieldbus and communication interface **RS485** or Modbus-RTU fieldbus and communication interface **RS232** or Modbus-RTU fieldbus and communication interface **USB**

**Power Supply Voltage**: From 18Vac up to 36Vac

**Phase Current**: From 3Arms up to 8Arms in increments of 0.1Arms

**Control Mode**: Fieldbus and/or internal user program (development by free tool UDP Commander)

**Performance:**Up to 3000rpm with 1/128 of step resolution

**Function Blocks**: Assignment, Jump and subroutine call, conditional and unconditional, Wait for Event, Math 32bit, Logical operations (OR, AND, XOR, and SHIFT) Waiting

**User Variables:**Freely declarable with 1byte, 2byte, 3byte and 4byte size.

**Special Features:**Reading and Writing of user variables via fieldbus, High-speed counter also usable for Encoder, Quote captures on the transition of one or more inputs, Timer, Automatic current reduction

**Digital Inputs**: 4 optoisolated: DI0, DI1, DI2, DI3 freely usable, Operating from 3V up to 28V at constant current, Each one NPN, PNP or Line Drive compatible

**Digital Outputs:** 2 optoisolated: FAULT, Operating up to 30V 50mA, Each one NPN or PNP compatible.

**Analog Inputs:**2 converted to 11bit: AI0, AI1, Operating from -10V up to 10V, Also usable as digital inputs.

**Analog Outputs:**1 converted to 10bit: AO0, Operating from 0V up to 10V, Current up to 10mA

**Protections, Alarms and Diagnostics:**Over and under voltage, thermal, Phase Motor interrupted,short circuit phase to phase, phase to ground, phase-supply, Univocal indication for each anomaly

**Connections:**By functional removable terminal block. Section of cable up to AWG14

**Size:**100(H) x 35(L) x 119(W) mm

Add to basket

DS Series Programmable + Fieldbus 90VDC 3Arms DIN Mount Micro Stepper Drive
R4,622.90

***NB: Minimum order quantity is 2 units and if a smaller quantity is required please contact sales@industratech.co.za for your prices.***

**Selection of:** Modbus-RTU fieldbus and communication interface **RS485** or Modbus-RTU fieldbus and communication interface **RS232** or Modbus-RTU fieldbus and communication interface **USB**

**Power Supply Voltage**: From 24Vdc up to 90Vdc

**Phase Current**: From 0.8Arms up to 3Arms in increments of 0.1Arms

**Control Mode**: Fieldbus and/or internal user program (development by free tool UDP Commander)

**Performance:**Up to 3000rpm with 1/128 of step resolution

**Function Blocks**: Assignment, Jump and subroutine call, conditional and unconditional, Wait for Event, Math 32bit, Logical operations (OR, AND, XOR, and SHIFT) Waiting

**User Variables:**Freely declarable with 1byte, 2byte, 3byte and 4byte size.

**Special Features:**Reading and Writing of user variables via fieldbus, High-speed counter also usable for Encoder, Quote captures on the transition of one or more inputs, Timer, Automatic current reduction

**Digital Inputs**: 4 optoisolated: DI0, DI1, DI2, DI3 freely usable, Operating from 3V up to 28V at constant current, Each one NPN, PNP or Line Drive compatible

**Digital Outputs:** 2 optoisolated: FAULT, Operating up to 30V 50mA, Each one NPN or PNP compatible.

**Analog Inputs:**2 converted to 11bit: AI0, AI1, Operating from -10V up to 10V, Also usable as digital inputs.

**Analog Outputs:**1 converted to 10bit: AO0, Operating from 0V up to 10V, Current up to 10mA

**Protections, Alarms and Diagnostics:**Over and under voltage, thermal, Phase Motor interrupted,short circuit phase to phase, phase to ground, phase-supply, Univocal indication for each anomaly

**Connections:**By functional removable terminal block. Section of cable up to AWG14

**Size:**100(H) x 22.7(L) x 119(W) mm

Add to basket

DS Series Programmable + Fieldbus 65VAC 3Arms DIN Mount Micro Stepper Drive
R5,012.78

***NB: Minimum order quantity is 2 units and if a smaller quantity is required please contact sales@industratech.co.za for your prices.***

**Selection of:** Modbus-RTU fieldbus and communication interface **RS485** or Modbus-RTU fieldbus and communication interface **RS232** or Modbus-RTU fieldbus and communication interface **USB**

**Power Supply Voltage**: From 20Vac up to 65Vac

**Phase Current**: From 0.8Arms up to 3Arms in increments of 0.1Arms

**Control Mode**: Fieldbus and/or internal user program (development by free tool UDP Commander)

**Performance:**Up to 3000rpm with 1/128 of step resolution

**Function Blocks**: Assignment, Jump and subroutine call, conditional and unconditional, Wait for Event, Math 32bit, Logical operations (OR, AND, XOR, and SHIFT) Waiting

**User Variables:**Freely declarable with 1byte, 2byte, 3byte and 4byte size.

**Special Features:**Reading and Writing of user variables via fieldbus, High-speed counter also usable for Encoder, Quote captures on the transition of one or more inputs, Timer, Automatic current reduction

**Digital Inputs**: 4 optoisolated: DI0, DI1, DI2, DI3 freely usable, Operating from 3V up to 28V at constant current, Each one NPN, PNP or Line Drive compatible

**Digital Outputs:** 2 optoisolated: FAULT, Operating up to 30V 50mA, Each one NPN or PNP compatible.

**Analog Inputs:**2 converted to 11bit: AI0, AI1, Operating from -10V up to 10V, Also usable as digital inputs.

**Analog Outputs:**1 converted to 10bit: AO0, Operating from 0V up to 10V, Current up to 10mA

**Protections, Alarms and Diagnostics:**Over and under voltage, thermal, Phase Motor interrupted,short circuit phase to phase, phase to ground, phase-supply, Univocal indication for each anomaly

**Connections:**By functional removable terminal block. Section of cable up to AWG14

**Size:**100(H) x 35(L) x 119(W) mm

Add to basket

DS Series Programmable + Fieldbus 90VDC 6Arms DIN Mount Micro Stepper Drive
R5,341.10

***NB: Minimum order quantity is 2 units and if a smaller quantity is required please contact sales@industratech.co.za for your prices.***

**Selection of:** Modbus-RTU fieldbus and communication interface **RS485** or Modbus-RTU fieldbus and communication interface **RS232** or Modbus-RTU fieldbus and communication interface **USB**

**Power Supply Voltage**: From 24Vdc up to 90Vdc

**Phase Current**: From 2Arms up to 6Arms in increments of 0.1Arms

**Control Mode**: Fieldbus and/or internal user program (development by free tool UDP Commander)

**Performance:**Up to 3000rpm with 1/128 of step resolution

**Function Blocks**: Assignment, Jump and subroutine call, conditional and unconditional, Wait for Event, Math 32bit, Logical operations (OR, AND, XOR, and SHIFT) Waiting

**User Variables:**Freely declarable with 1byte, 2byte, 3byte and 4byte size.

**Special Features:**Reading and Writing of user variables via fieldbus, High-speed counter also usable for Encoder, Quote captures on the transition of one or more inputs, Timer, Automatic current reduction

**Digital Inputs**: 4 optoisolated: DI0, DI1, DI2, DI3 freely usable, Operating from 3V up to 28V at constant current, Each one NPN, PNP or Line Drive compatible

**Digital Outputs:** 2 optoisolated: FAULT, Operating up to 30V 50mA, Each one NPN or PNP compatible.

**Analog Inputs:**2 converted to 11bit: AI0, AI1, Operating from -10V up to 10V, Also usable as digital inputs.

**Analog Outputs:**1 converted to 10bit: AO0, Operating from 0V up to 10V, Current up to 10mA

**Protections, Alarms and Diagnostics:**Over and under voltage, thermal, Phase Motor interrupted,short circuit phase to phase, phase to ground, phase-supply, Univocal indication for each anomaly

**Connections:**By functional removable terminal block. Section of cable up to AWG14

**Size:**100(H) x 35(L) x 119(W) mm

Add to basket

←1

2 3 4

…5 6 7 8 9 →

Site map

Home
Services
Products
- My account
Contact Us

Contact Details

Tel: 031 467 7019
Cell: 079 435 4491
Fax: 086 677 0361
Email: bradley@industratech.co.za
Email: sales@industratech.co.za

Powered by Netrepreneurs

Go to Top
