DS Series Programmable + Fieldbus 65VAC 6Arms DIN Mount Micro Stepper Drive
R6,120.86

***NB: Minimum order quantity is 2 units and if a smaller quantity is required please contact sales@industratech.co.za for your prices.***

**Selection of:** Modbus-RTU fieldbus and communication interface **RS485** or Modbus-RTU fieldbus and communication interface **RS232** or Modbus-RTU fieldbus and communication interface **USB**

**Power Supply Voltage**: From 20Vac up to 65Vac

**Phase Current**: From 2Arms up to 6Arms in increments of 0.1Arms

**Control Mode**: Fieldbus and/or internal user program (development by free tool UDP Commander)

**Performance:**Up to 3000rpm with 1/128 of step resolution

**Function Blocks**: Assignment, Jump and subroutine call, conditional and unconditional, Wait for Event, Math 32bit, Logical operations (OR, AND, XOR, and SHIFT) Waiting

**User Variables:**Freely declarable with 1byte, 2byte, 3byte and 4byte size.

**Special Features:**Reading and Writing of user variables via fieldbus, High-speed counter also usable for Encoder, Quote captures on the transition of one or more inputs, Timer, Automatic current reduction

**Digital Inputs**: 4 optoisolated: DI0, DI1, DI2, DI3 freely usable, Operating from 3V up to 28V at constant current, Each one NPN, PNP or Line Drive compatible

**Digital Outputs:** 2 optoisolated: FAULT, Operating up to 30V 50mA, Each one NPN or PNP compatible.

**Analog Inputs:**2 converted to 11bit: AI0, AI1, Operating from -10V up to 10V, Also usable as digital inputs.

**Analog Outputs:**1 converted to 10bit: AO0, Operating from 0V up to 10V, Current up to 10mA

**Protections, Alarms and Diagnostics:**Over and under voltage, thermal, Phase Motor interrupted,short circuit phase to phase, phase to ground, phase-supply, Univocal indication for each anomaly

**Connections:**By functional removable terminal block. Section of cable up to AWG14

**Size:**100(H) x 35(L) x 119(W) mm

Add to basket

DS Series Programmable + Fieldbus 90VDC 10Arms DIN Mount Micro Stepper Drive
R6,059.30

***NB: Minimum order quantity is 2 units and if a smaller quantity is required please contact sales@industratech.co.za for your prices.***

**Selection of:** Modbus-RTU fieldbus and communication interface **RS485** or Modbus-RTU fieldbus and communication interface **RS232** or Modbus-RTU fieldbus and communication interface **USB**

**Power Supply Voltage**: From 24Vdc up to 90Vdc

**Phase Current**: From 4Arms up to 10Arms in increments of 0.1Arms

**Control Mode**: Fieldbus and/or internal user program (development by free tool UDP Commander)

**Performance:**Up to 3000rpm with 1/128 of step resolution

**Function Blocks**: Assignment, Jump and subroutine call, conditional and unconditional, Wait for Event, Math 32bit, Logical operations (OR, AND, XOR, and SHIFT) Waiting

**User Variables:**Freely declarable with 1byte, 2byte, 3byte and 4byte size.

**Special Features:**Reading and Writing of user variables via fieldbus, High-speed counter also usable for Encoder, Quote captures on the transition of one or more inputs, Timer, Automatic current reduction

**Digital Inputs**: 4 optoisolated: DI0, DI1, DI2, DI3 freely usable, Operating from 3V up to 28V at constant current, Each one NPN, PNP or Line Drive compatible

**Digital Outputs:** 2 optoisolated: FAULT, Operating up to 30V 50mA, Each one NPN or PNP compatible.

**Analog Inputs:**2 converted to 11bit: AI0, AI1, Operating from -10V up to 10V, Also usable as digital inputs.

**Analog Outputs:**1 converted to 10bit: AO0, Operating from 0V up to 10V, Current up to 10mA

**Protections, Alarms and Diagnostics:**Over and under voltage, thermal, Phase Motor interrupted,short circuit phase to phase, phase to ground, phase-supply, Univocal indication for each anomaly

**Connections:**By functional removable terminal block. Section of cable up to AWG14

**Size:**100(H) x 35(L) x 119(W) mm

Add to basket

DS Series Programmable + Fieldbus 65VAC 10Arms DIN Mount Micro Stepper Drive
R6,921.14

***NB: Minimum order quantity is 2 units and if a smaller quantity is required please contact sales@industratech.co.za for your prices.***

**Selection of:** Modbus-RTU fieldbus and communication interface **RS485** or Modbus-RTU fieldbus and communication interface **RS232** or Modbus-RTU fieldbus and communication interface **USB**

**Power Supply Voltage**: From 20Vac up to 65Vac

**Phase Current**: From 4Arms up to 10Arms in increments of 0.1Arms

**Control Mode**: Fieldbus and/or internal user program (development by free tool UDP Commander)

**Performance:**Up to 3000rpm with 1/128 of step resolution

**Function Blocks**: Assignment, Jump and subroutine call, conditional and unconditional, Wait for Event, Math 32bit, Logical operations (OR, AND, XOR, and SHIFT) Waiting

**User Variables:**Freely declarable with 1byte, 2byte, 3byte and 4byte size.

**Special Features:**Reading and Writing of user variables via fieldbus, High-speed counter also usable for Encoder, Quote captures on the transition of one or more inputs, Timer, Automatic current reduction

**Digital Inputs**: 4 optoisolated: DI0, DI1, DI2, DI3 freely usable, Operating from 3V up to 28V at constant current, Each one NPN, PNP or Line Drive compatible

**Digital Outputs:** 2 optoisolated: FAULT, Operating up to 30V 50mA, Each one NPN or PNP compatible.

**Analog Inputs:**2 converted to 11bit: AI0, AI1, Operating from -10V up to 10V, Also usable as digital inputs.

**Analog Outputs:**1 converted to 10bit: AO0, Operating from 0V up to 10V, Current up to 10mA

**Protections, Alarms and Diagnostics:**Over and under voltage, thermal, Phase Motor interrupted,short circuit phase to phase, phase to ground, phase-supply, Univocal indication for each anomaly

**Connections:**By functional removable terminal block. Section of cable up to AWG14

**Size:** 100(H) x 35(L) x 119(W) mm

Add to basket

DS Series Programmable + Fieldbus 160VDC 4Arms DIN Mount Micro Stepper Drive
R5,936.18

***NB: Minimum order quantity is 2 units and if a smaller quantity is required please contact sales@industratech.co.za for your prices.***

**Selection of:** Modbus-RTU fieldbus and communication interface **RS485** or Modbus-RTU fieldbus and communication interface **RS232** or Modbus-RTU fieldbus and communication interface **USB**

**Power Supply Voltage**: From 45Vdc up to 160Vdc

**Phase Current**: From 2Arms up to 4Arms in increments of 0.1Arms

**Control Mode**: Fieldbus and/or internal user program (development by free tool UDP Commander)

**Performance:**Up to 3000rpm with 1/128 of step resolution

**Function Blocks**: Assignment, Jump and subroutine call, conditional and unconditional, Wait for Event, Math 32bit, Logical operations (OR, AND, XOR, and SHIFT) Waiting

**User Variables:**Freely declarable with 1byte, 2byte, 3byte and 4byte size.

**Special Features:**Reading and Writing of user variables via fieldbus, High-speed counter also usable for Encoder, Quote captures on the transition of one or more inputs, Timer, Automatic current reduction

**Digital Inputs**: 4 optoisolated: DI0, DI1, DI2, DI3 freely usable, Operating from 3V up to 28V at constant current, Each one NPN, PNP or Line Drive compatible

**Digital Outputs:** 2 optoisolated: FAULT, Operating up to 30V 50mA, Each one NPN or PNP compatible.

**Analog Inputs:**2 converted to 11bit: AI0, AI1, Operating from -10V up to 10V, Also usable as digital inputs.

**Analog Outputs:**1 converted to 10bit: AO0, Operating from 0V up to 10V, Current up to 10mA

**Protections, Alarms and Diagnostics:**Over and under voltage, thermal, Phase Motor interrupted,short circuit phase to phase, phase to ground, phase-supply, Univocal indication for each anomaly

**Connections:**By functional removable terminal block. Section of cable up to AWG14

**Size**: 100(H) x 35(L) x 119(W) mm

Add to basket

DS Series Programmable + Fieldbus 115VAC 4Arms DIN Mount Micro Stepper Drive
R6,715.94

***NB: Minimum order quantity is 2 units and if a smaller quantity is required please contact sales@industratech.co.za for your prices.***

**Selection of:** Modbus-RTU fieldbus and communication interface **RS485** or Modbus-RTU fieldbus and communication interface **RS232** or Modbus-RTU fieldbus and communication interface **USB**

**Power Supply Voltage**: From 35Vac up to 115Vac

**Phase Current**: From 2Arms up to 4Arms in increments of 0.1Arms

**Control Mode**: Fieldbus and/or internal user program (development by free tool UDP Commander)

**Performance:**Up to 3000rpm with 1/128 of step resolution

**Function Blocks**: Assignment, Jump and subroutine call, conditional and unconditional, Wait for Event, Math 32bit, Logical operations (OR, AND, XOR, and SHIFT) Waiting

**User Variables:**Freely declarable with 1byte, 2byte, 3byte and 4byte size.

**Special Features:**Reading and Writing of user variables via fieldbus, High-speed counter also usable for Encoder, Quote captures on the transition of one or more inputs, Timer, Automatic current reduction

**Digital Inputs**: 4 optoisolated: DI0, DI1, DI2, DI3 freely usable, Operating from 3V up to 28V at constant current, Each one NPN, PNP or Line Drive compatible

**Digital Outputs:** 2 optoisolated: FAULT, Operating up to 30V 50mA, Each one NPN or PNP compatible.

**Analog Inputs:**2 converted to 11bit: AI0, AI1, Operating from -10V up to 10V, Also usable as digital inputs.

**Analog Outputs:**1 converted to 10bit: AO0, Operating from 0V up to 10V, Current up to 10mA

**Protections, Alarms and Diagnostics:**Over and under voltage, thermal, Phase Motor interrupted,short circuit phase to phase, phase to ground, phase-supply, Univocal indication for each anomaly

**Connections:**By functional removable terminal block. Section of cable up to AWG14

**Size:**100(H) x 35(L) x 119(W) mm

Add to basket

DS Series Programmable + Fieldbus 160VDC 8.5Arms DIN Mount Micro Stepper Drive
R6,756.98

***NB: Minimum order quantity is 2 units and if a smaller quantity is required please contact sales@industratech.co.za for your prices.***

**Selection of:** Modbus-RTU fieldbus and communication interface **RS485** or Modbus-RTU fieldbus and communication interface **RS232** or Modbus-RTU fieldbus and communication interface **USB**

**Power Supply Voltage**: From 45Vdc up to 160Vdc

**Phase Current**: From 4Arms up to 8.5Arms in increments of 0.1Arms

**Control Mode**: Fieldbus and/or internal user program (development by free tool UDP Commander)

**Performance:**Up to 3000rpm with 1/128 of step resolution

**Function Blocks**: Assignment, Jump and subroutine call, conditional and unconditional, Wait for Event, Math 32bit, Logical operations (OR, AND, XOR, and SHIFT) Waiting

**User Variables:**Freely declarable with 1byte, 2byte, 3byte and 4byte size.

**Special Features:**Reading and Writing of user variables via fieldbus, High-speed counter also usable for Encoder, Quote captures on the transition of one or more inputs, Timer, Automatic current reduction

**Digital Inputs**: 4 optoisolated: DI0, DI1, DI2, DI3 freely usable, Operating from 3V up to 28V at constant current, Each one NPN, PNP or Line Drive compatible

**Digital Outputs:** 2 optoisolated: FAULT, Operating up to 30V 50mA, Each one NPN or PNP compatible.

**Analog Inputs:**2 converted to 11bit: AI0, AI1, Operating from -10V up to 10V, Also usable as digital inputs.

**Analog Outputs:**1 converted to 10bit: AO0, Operating from 0V up to 10V, Current up to 10mA

**Protections, Alarms and Diagnostics:**Over and under voltage, thermal, Phase Motor interrupted,short circuit phase to phase, phase to ground, phase-supply, Univocal indication for each anomaly

**Connections:**By functional removable terminal block. Section of cable up to AWG14

**Size:**100(H) x 35(L) x 119(W) mm

Add to basket

DS Series Programmable + Fieldbus 115VAC 8.5Arms DIN Mount Micro Stepper Drive
R7,700.90

***NB: Minimum order quantity is 2 units and if a smaller quantity is required please contact sales@industratech.co.za for your prices.***

**Selection of:** Modbus-RTU fieldbus and communication interface **RS485** or Modbus-RTU fieldbus and communication interface **RS232** or Modbus-RTU fieldbus and communication interface **USB**

**Power Supply Voltage**: From 35Vac up to 115Vac

**Phase Current**: From 4Arms up to 8.5Arms in increments of 0.1Arms

**Control Mode**: Fieldbus and/or internal user program (development by free tool UDP Commander)

**Performance:**Up to 3000rpm with 1/128 of step resolution

**Function Blocks**: Assignment, Jump and subroutine call, conditional and unconditional, Wait for Event, Math 32bit, Logical operations (OR, AND, XOR, and SHIFT) Waiting

**User Variables:**Freely declarable with 1byte, 2byte, 3byte and 4byte size.

**Special Features:**Reading and Writing of user variables via fieldbus, High-speed counter also usable for Encoder, Quote captures on the transition of one or more inputs, Timer, Automatic current reduction

**Digital Inputs**: 4 optoisolated: DI0, DI1, DI2, DI3 freely usable, Operating from 3V up to 28V at constant current, Each one NPN, PNP or Line Drive compatible

**Digital Outputs:** 2 optoisolated: FAULT, Operating up to 30V 50mA, Each one NPN or PNP compatible.

**Analog Inputs:**2 converted to 11bit: AI0, AI1, Operating from -10V up to 10V, Also usable as digital inputs.

**Analog Outputs:**1 converted to 10bit: AO0, Operating from 0V up to 10V, Current up to 10mA

**Protections, Alarms and Diagnostics:**Over and under voltage, thermal, Phase Motor interrupted,short circuit phase to phase, phase to ground, phase-supply, Univocal indication for each anomaly

**Connections:**By functional removable terminal block. Section of cable up to AWG14

**Size:**100(H) x 35(L) x 119(W) mm

Add to basket

DS Series Programmable + Fieldbus 240VDC 10Arms DIN Mount Micro Stepper Drive
R7,865.06

***NB: Minimum order quantity is 2 units and if a smaller quantity is required please contact sales@industratech.co.za for your prices.***

**Selection of:** Modbus-RTU fieldbus and communication interface **RS485** or Modbus-RTU fieldbus and communication interface **RS232** or Modbus-RTU fieldbus and communication interface **USB**

**Power Supply Voltage**: From 45Vdc up to 240Vdc

**Phase Current**: From 4Arms up to 10Arms in increments of 0.1Arms

**Control Mode**: Fieldbus and/or internal user program (development by free tool UDP Commander)

**Performance:**Up to 3000rpm with 1/128 of step resolution

**Function Blocks**: Assignment, Jump and subroutine call, conditional and unconditional, Wait for Event, Math 32bit, Logical operations (OR, AND, XOR, and SHIFT) Waiting

**User Variables:**Freely declarable with 1byte, 2byte, 3byte and 4byte size.

**Special Features:**Reading and Writing of user variables via fieldbus, High-speed counter also usable for Encoder, Quote captures on the transition of one or more inputs, Timer, Automatic current reduction

**Digital Inputs**: 4 optoisolated: DI0, DI1, DI2, DI3 freely usable, Operating from 3V up to 28V at constant current, Each one NPN, PNP or Line Drive compatible

**Digital Outputs:** 2 optoisolated: FAULT, Operating up to 30V 50mA, Each one NPN or PNP compatible.

**Analog Inputs:**2 converted to 11bit: AI0, AI1, Operating from -10V up to 10V, Also usable as digital inputs.

**Analog Outputs:**1 converted to 10bit: AO0, Operating from 0V up to 10V, Current up to 10mA

**Protections, Alarms and Diagnostics:**Over and under voltage, thermal, Phase Motor interrupted,short circuit phase to phase, phase to ground, phase-supply, Univocal indication for each anomaly

**Connections:**By functional removable terminal block. Section of cable up to AWG14

**Size:**100(H) x 35(L) x 119(W) mm

Add to basket

UDP 30 (USB Programmer for Stepper Drives)
R980.60

The UDP30 interface enables communications between a PC and any device equipped with a DUP port.

The DUP port is a proprietary interface, developed by LAM Technologies, designed in order to simplify the configuration of its own products and to allow a fast reading, and in real time, of device status and diagnostic information.

The connection to the PC is through any USB port, from which the interface takes the power supply to operate (no external power supply is required).

Unlike a common serial connection, the USB port offers an higher speed and an intrinsic errors control system.

The supplied software is suitable for the following operating systems: Windows 98, Windows ME, Windows XP x64, Windows XP, Windows Server 2003, Windows Vista, Windows Server 2008, Windows 7 (32bit and 64bit).

Technical Data

Power supply Drawn from the USB port

Supported OS Windows 98, SE, Me, 2000, XP, Vista, Windows 7 32bit and 64bit

USB connector Type B

Dimensions 25(H) x 80(L) x 56(W) mm
0.98(H) x 3.15(L) x 2.2(W) inches

Add to basket

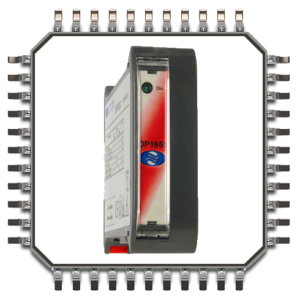

DP Series Unregulated Power Supply IN:0..42Vac OUT:0..60Vdc 16A
R2,009.16

***NB: Minimum order quantity is 2 units and if a smaller quantity is required please contact sales@industratech.co.za for your prices.***

**Input voltage:** From 0Vac up to 42Vac single phase or three phase

**Output Voltage:** Da 0Vdc a 60Vdc

**Output Current:** 16Arms with three phase input
12Arms with single phase input

**Connections:** By functional removable terminal block. Section of cable up to AWG14

**Size:** 100(H) x 35(L) x 119(W) mm

Add to basket

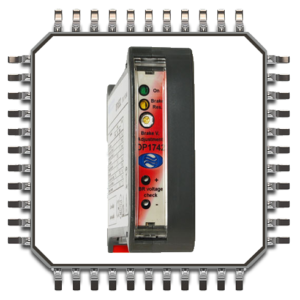

DP Series Unregulated Power Supply with braking resistor control IN:20..42Vac OUT:28..60Vdc 16A
R2,332.35

***NB: Minimum order quantity is 2 units and if a smaller quantity is required please contact sales@industratech.co.za for your prices.***

**Input voltage:** From 20Vac up to 42Vac single phase or three phase

**Output Voltage:** Da 28Vdc a 60Vdc

**Output Current:** 16Arms with three phase input
12Arms with single phase input

**Braking Resistor Threshold Voltage:** Adjustable from 20Vdc up to 60Vdc

**Connections:** By functional removable terminal block. Section of cable up to AWG14

**Size:** 100(H) x 35(L) x 119(W) mm

Add to basket

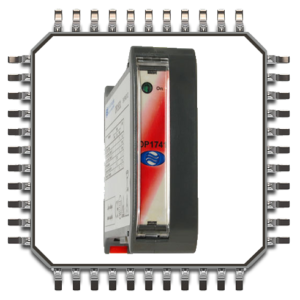

DP Series Unregulated Power Supply IN:0..68Vac OUT:0..100Vdc 16A
R2,458.04

***NB: Minimum order quantity is 2 units and if a smaller quantity is required please contact sales@industratech.co.za for your prices.***

**Input voltage:** From 0Vac up to 68Vac single phase or three phase

**Output Voltage:** Da 0Vdc a 100Vdc

**Output Current:** 16Arms with three phase input
8Arms with single phase input

**Connections:** By functional removable terminal block. Section of cable up to AWG14

**Size:** 100(H) x 35(L) x 119(W) mm

Add to basket

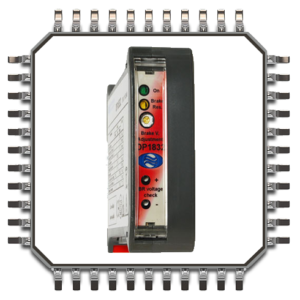

DP Series Unregulated Power Supply with braking resistor control IN:24..68Vac OUT:35..100Vdc 16A
R2,835.09

***NB: Minimum order quantity is 2 units and if a smaller quantity is required please contact sales@industratech.co.za for your prices.***

**Input voltage:** From 24Vac up to 68Vac single phase or three phase

**Output Voltage:** Da 35Vdc a 100Vdc

**Output Current:** 16Arms with three phase input
8Arms with single phase input

**Braking Resistor Threshold Voltage:** Adjustable from 50Vdc up to 100Vdc

**Connections:** By functional removable terminal block. Section of cable up to AWG14

**Size:** 100(H) x 35(L) x 119(W) mm

Add to basket

DP Series Unregulated Power Supply IN:0..135Vac OUT:0..200Vdc 12A
R2,906.91

***NB: Minimum order quantity is 2 units and if a smaller quantity is required please contact sales@industratech.co.za for your prices.***

**Input voltage:** From 0Vac up to 135Vac single phase or three phase

**Output Voltage:** Da 0Vdc a 200Vdc

**Output Current:** 12Arms with three phase input
6Arms with single phase input

**Connections:** By functional removable terminal block. Section of cable up to AWG14

**Size:** 100(H) x 35(L) x 119(W) mm

Add to basket

DP Series Unregulated Power Supply with braking resistor control IN:48..135Vac OUT:68..200Vdc 12A
R3,373.74

***NB: Minimum order quantity is 2 units and if a smaller quantity is required please contact sales@industratech.co.za for your prices.***

**Input voltage:** From 48Vac up to 135Vac single phase or three phase

**Output Voltage:** Da 68Vdc a 200Vdc

**Output Current:** 12Arms with three phase input
6Arms with single phase input

**Braking Resistor Threshold Voltage:** Adjustable from 100Vdc up to 200Vdc

**Connections:** By functional removable terminal block. Section of cable up to AWG14

**Size:** 100(H) x 35(L) x 119(W) mm

Add to basket

DP Series Unregulated Power Supply IN:0..170Vac OUT:0..250Vdc 12A
R3,104.42

***NB: Minimum order quantity is 2 units and if a smaller quantity is required please contact sales@industratech.co.za for your prices.***

**Input voltage:** From 0Vac up to 170Vac single phase or three phase

**Output Voltage:** Da 0Vdc a 250Vdc

**Output Current:** 12Arms with three phase input
6Arms with single phase input

**Connections:** By functional removable terminal block. Section of cable up to AWG14

**Size:** 100(H) x 35(L) x 119(W) mm

Add to basket

←1

2 3 4

…5 6 7 8 9 →

Site map

Home
Services
Products
- My account
Contact Us

Contact Details

Tel: 031 467 7019
Cell: 079 435 4491
Fax: 086 677 0361
Email: bradley@industratech.co.za
Email: sales@industratech.co.za

Powered by Netrepreneurs

Go to Top

Power supply	Drawn from the USB port
Supported OS	Windows 98, SE, Me, 2000, XP, Vista, Windows 7 32bit and 64bit
USB connector	Type B
Dimensions	25(H) x 80(L) x 56(W) mm 0.98(H) x 3.15(L) x 2.2(W) inches

Technical Data
