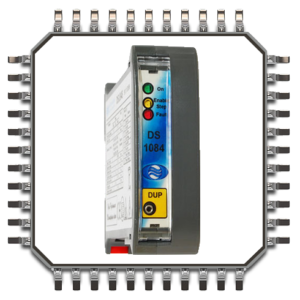

DS Series Step & Direction 90VDC 6Arms Din Mount Micro Stepper Drive

R3,553.29

NB: Minimum order quantity is 2 units and if a smaller quantity is required please contact sales@industratech.co.za for your prices.

  • Power Supply Voltage:  From 24Vdc up to 90Vdc
  • Phase Current: From 2Arms up to 6Arms in increments of 0.1Arms
  • Control Mode: Step and Direction. Start/Stop
  • Digital Inputs: 4 optoisolated: STEP, DIRECTION, ENABLE, BOOST Operating from 3V up to 28V at constant current Each one NPN, PNP or Line Drive compatible.
  • Step subdivision: Microstepping. Selectable from full step to 1/128 step
  • STEP Max Frequency: 300KHz
  • Protections, Alarms and Diagnostics: Over and under voltage, thermal, Phase Motor interrupted Short circuit phase to phase, phase to ground, phase-supply, Univocal indication for each anomaly.
  • Connections: By functional removable terminal block. Section of cable up to AWG14
  • Size:100(H) x 35(L) x 119(W) mm
Add to basket

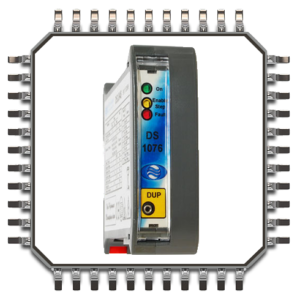

DS Series Step & Direction 65VAC 6Arms Din Mount Micro Stepper Drive

R4,073.99

NB: Minimum order quantity is 2 units and if a smaller quantity is required please contact sales@industratech.co.za for your prices.

  • Power Supply Voltage: From 20Vac up to 65Vac
  • Phase Current: From 2Arms up to 6Arms in increments of 0.1Arms
  • Control Mode: Step and Direction. Start/Stop
  • Digital Inputs: 4 optoisolated: STEP, DIRECTION, ENABLE, BOOST Operating from 3V up to 28V at constant current Each one NPN, PNP or Line Drive compatible.
  • Step subdivision: Microstepping. Selectable from full step to 1/128 step
  • STEP Max Frequency: 300KHz
  • Protections, Alarms and Diagnostics: Over and under voltage, thermal, Phase Motor interrupted Short circuit phase to phase, phase to ground, phase-supply, Univocal indication for each anomaly.
  • Connections: By functional removable terminal block. Section of cable up to AWG14
  • Size:100(H) x 35(L) x 119(W) mm
Add to basket

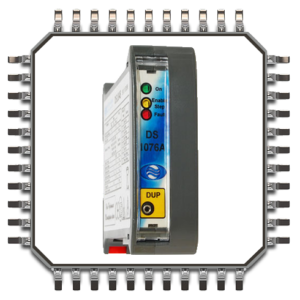

DS Series Step & Direction 90VDC 10Arms Din Mount Micro Stepper Drive

R4,181.72

NB: Minimum order quantity is 2 units and if a smaller quantity is required please contact sales@industratech.co.za for your prices.

  • Power Supply Voltage:  From 24Vdc up to 90Vdc
  • Phase Current: From 4Arms up to 10Arms in increments of 0.1Arms
  • Control Mode: Step and Direction. Start/Stop
  • Digital Inputs: 4 optoisolated: STEP, DIRECTION, ENABLE, BOOST Operating from 3V up to 28V at constant current Each one NPN, PNP or Line Drive compatible.
  • Step subdivision: Microstepping. Selectable from full step to 1/128 step
  • STEP Max Frequency: 300KHz
  • Protections, Alarms and Diagnostics: Over and under voltage, thermal, Phase Motor interrupted Short circuit phase to phase, phase to ground, phase-supply, Univocal indication for each anomaly.
  • Connections: By functional removable terminal block. Section of cable up to AWG14
  • Size:100(H) x 35(L) x 119(W) mm
Add to basket

DS Series Step & Direction 65VAC 10Arms Din Mount Micro Stepper Drive

R4,756.28

NB: Minimum order quantity is 2 units and if a smaller quantity is required please contact sales@industratech.co.za for your prices.

  • Power Supply Voltage:  From 20Vac up to 65Vac
  • Phase Current: From 4Arms up to 10Arms in increments of 0.1Arms
  • Control Mode: Step and Direction. Start/Stop
  • Digital Inputs: 4 optoisolated: STEP, DIRECTION, ENABLE, BOOST Operating from 3V up to 28V at constant current Each one NPN, PNP or Line Drive compatible.
  • Step subdivision: Microstepping. Selectable from full step to 1/128 step
  • STEP Max Frequency: 300KHz
  • Protections, Alarms and Diagnostics: Over and under voltage, thermal, Phase Motor interrupted Short circuit phase to phase, phase to ground, phase-supply, Univocal indication for each anomaly.
  • Connections: By functional removable terminal block. Section of cable up to AWG14
  • Size:100(H) x 35(L) x 119(W) mm
Add to basket

DS Series Step & Direction 160VDC 4Arms Din Mount Micro Stepper Drive

R4,073.99

NB: Minimum order quantity is 2 units and if a smaller quantity is required please contact sales@industratech.co.za for your prices.

  • Power Supply Voltage: From 45Vdc up to 160Vdc
  • Phase Current: From 2Arms up to 4Arms in increments of 0.1Arms
  • Control Mode: Step and Direction. Start/Stop
  • Digital Inputs: 4 optoisolated: STEP, DIRECTION, ENABLE, BOOST Operating from 3V up to 28V at constant current Each one NPN, PNP or Line Drive compatible.
  • Step subdivision: Microstepping. Selectable from full step to 1/128 step
  • STEP Max Frequency: 300KHz
  • Protections, Alarms and Diagnostics: Over and under voltage, thermal, Phase Motor interrupted Short circuit phase to phase, phase to ground, phase-supply, Univocal indication for each anomaly.
  • Connections: By functional removable terminal block. Section of cable up to AWG14
  • Size:100(H) x 35(L) x 119(W) mm
Add to basket

DS Series Step & Direction 115VAC 4Arms Din Mount Micro Stepper Drive

R4,594.68

NB: Minimum order quantity is 2 units and if a smaller quantity is required please contact sales@industratech.co.za for your prices.

  • Power Supply Voltage:  From 35Vac up to 115Vac
  • Phase Current: From 2Arms up to 4Arms in increments of 0.1Arms
  • Control Mode: Step and Direction. Start/Stop
  • Digital Inputs: 4 optoisolated: STEP, DIRECTION, ENABLE, BOOST Operating from 3V up to 28V at constant current Each one NPN, PNP or Line Drive compatible.
  • Step subdivision: Microstepping. Selectable from full step to 1/128 step
  • STEP Max Frequency: 300KHz
  • Protections, Alarms and Diagnostics: Over and under voltage, thermal, Phase Motor interrupted Short circuit phase to phase, phase to ground, phase-supply, Univocal indication for each anomaly.
  • Connections: By functional removable terminal block. Section of cable up to AWG14
  • Size:100(H) x 35(L) x 119(W) mm
Add to basket

DS Series Step & Direction 160VDC 8.5Arms Din Mount Micro Stepper Drive

R4,792.19

NB: Minimum order quantity is 2 units and if a smaller quantity is required please contact sales@industratech.co.za for your prices.

  • Power Supply Voltage:  From 45Vdc up to 160Vdc
  • Phase Current: From 4Arms up to 8.5Arms in increments of 0.1Arms
  • Control Mode: Step and Direction. Start/Stop
  • Digital Inputs: 4 optoisolated: STEP, DIRECTION, ENABLE, BOOST Operating from 3V up to 28V at constant current Each one NPN, PNP or Line Drive compatible.
  • Step subdivision: Microstepping. Selectable from full step to 1/128 step
  • STEP Max Frequency: 300KHz
  • Protections, Alarms and Diagnostics: Over and under voltage, thermal, Phase Motor interrupted Short circuit phase to phase, phase to ground, phase-supply, Univocal indication for each anomaly.
  • Connections: By functional removable terminal block. Section of cable up to AWG14
  • Size:100(H) x 35(L) x 119(W) mm
Add to basket

DS Series Step & Direction 115VAC 8.5Arms Din Mount Micro Stepper Drive

R5,438.57

NB: Minimum order quantity is 2 units and if a smaller quantity is required please contact sales@industratech.co.za for your prices.

  • Power Supply Voltage:  From 35Vac up to 115Vac
  • Phase Current: From 4Arms up to 8.5Arms in increments of 0.1Arms
  • Control Mode: Step and Direction. Start/Stop
  • Digital Inputs: 4 optoisolated: STEP, DIRECTION, ENABLE, BOOST Operating from 3V up to 28V at constant current Each one NPN, PNP or Line Drive compatible.
  • Step subdivision: Microstepping. Selectable from full step to 1/128 step
  • STEP Max Frequency: 300KHz
  • Protections, Alarms and Diagnostics: Over and under voltage, thermal, Phase Motor interrupted Short circuit phase to phase, phase to ground, phase-supply, Univocal indication for each anomaly.
  • Connections: By functional removable terminal block. Section of cable up to AWG14
  • Size:100(H) x 35(L) x 119(W) mm
Add to basket

DS Series Step & Direction 240VDC 10Arms Din Mount Micro Stepper Drive

R5,761.76

NB: Minimum order quantity is 2 units and if a smaller quantity is required please contact sales@industratech.co.za for your prices.

  • Power Supply Voltage:  From 45Vdc up to 240Vdc
  • Phase Current: From 4Arms up to 10Arms in increments of 0.1Arms
  • Control Mode: Step and Direction. Start/Stop
  • Digital Inputs: 4 optoisolated: STEP, DIRECTION, ENABLE, BOOST Operating from 3V up to 28V at constant current Each one NPN, PNP or Line Drive compatible.
  • Step subdivision: Microstepping. Selectable from full step to 1/128 step
  • STEP Max Frequency: 300KHz
  • Protections, Alarms and Diagnostics: Over and under voltage, thermal, Phase Motor interrupted Short circuit phase to phase, phase to ground, phase-supply, Univocal indication for each anomaly.
  • Connections: By functional removable terminal block. Section of cable up to AWG14
  • Size:100(H) x 35(L) x 119(W) mm
Add to basket

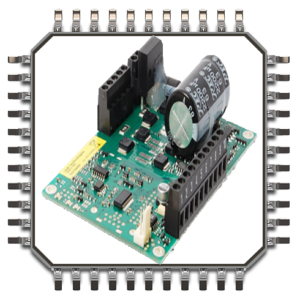

OS Series Step & Direction 50VDC 1.4Arms Panel Mount Micro Stepper Drive

R2,098.94

NB: Minimum order quantity is 2 units and if a smaller quantity is required please contact sales@industratech.co.za for your prices.

  • Power Supply Voltage: From 18Vdc up to 50Vdc
  • Phase Current: From 0.3Arms up to 1.4Arms in increments of 0.1Arms
  • Control Mode: Step and Direction. Start/Stop
  • Digital Inputs: 4 optoisolated: STEP, DIRECTION, ENABLE, BOOST Operating from 3V up to 28V at constant current Each one NPN, PNP or Line Drive compatible.
  • Step subdivision: Microstepping. Selectable from full step to 1/128 step
  • STEP Max Frequency: 300KHz
  • Protections, Alarms and Diagnostics: Over and under voltage, thermal, Phase Motor interrupted Short circuit phase to phase, phase to ground, phase-supply, Univocal indication for each anomaly.
  • Connections: By terminal block. Section of cable up to AWG14
  • Size:18(H) x 105(L) x 78(W) mm
Add to basket

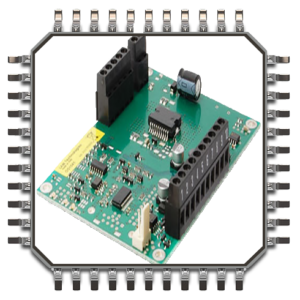

OS Series Step & Direction 36VAC 1.4Arms Panel Mount Micro Stepper Drive

R2,260.53

NB: Minimum order quantity is 2 units and if a smaller quantity is required please contact sales@industratech.co.za for your prices.

  • Power Supply Voltage:  From 16Vac up to 36Vac
  • Phase Current: From 0.3Arms up to 1.4Arms in increments of 0.1Arms
  • Control Mode: Step and Direction. Start/Stop
  • Digital Inputs: 4 optoisolated: STEP, DIRECTION, ENABLE, BOOST Operating from 3V up to 28V at constant current Each one NPN, PNP or Line Drive compatible.
  • Step subdivision: Microstepping. Selectable from full step to 1/128 step
  • STEP Max Frequency: 300KHz
  • Protections, Alarms and Diagnostics: Over and under voltage, thermal, Phase Motor interrupted Short circuit phase to phase, phase to ground, phase-supply, Univocal indication for each anomaly.
  • Connections: By functional removable terminal block. Section of cable up to AWG14
  • Size:22(H) x 105(L) x 78(W) mm
Add to basket

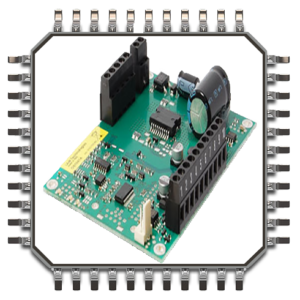

OS Series Step & Direction 50VDC 4Arms Panel Mount Micro Stepper Drive

R2,296.44

NB: Minimum order quantity is 2 units and if a smaller quantity is required please contact sales@industratech.co.za for your prices.

  • Power Supply Voltage: From 20Vdc up to 50Vdc
  • Phase Current: From 1Arms up to 4Arms in increments of 0.1Arms
  • Control Mode: Step and Direction. Start/Stop
  • Digital Inputs: 4 optoisolated: STEP, DIRECTION, ENABLE, BOOST Operating from 3V up to 28V at constant current Each one NPN, PNP or Line Drive compatible.
  • Step subdivision: Microstepping. Selectable from full step to 1/128 step
  • STEP Max Frequency: 300KHz
  • Protections, Alarms and Diagnostics: Over and under voltage, thermal, Phase Motor interrupted Short circuit phase to phase, phase to ground, phase-supply, Univocal indication for each anomaly.
  • Connections: By terminal block. Section of cable up to AWG14
  • Size: 18(H) x 105(L) x 78(W) mm
Add to basket

OS Series Step & Direction 36VAC 4Arms Panel Mount Micro Stepper Drive

R2,475.99

NB: Minimum order quantity is 2 units and if a smaller quantity is required please contact sales@industratech.co.za for your prices.

  • Power Supply Voltage: From 18Vac up to 36Vac
  • Phase Current: From 1Arms up to 4Arms in increments of 0.1Arms
  • Control Mode: Step and Direction. Start/Stop
  • Digital Inputs: 4 optoisolated: STEP, DIRECTION, ENABLE, BOOST Operating from 3V up to 28V at constant current Each one NPN, PNP or Line Drive compatible.
  • Step subdivision: Microstepping. Selectable from full step to 1/128 step
  • STEP Max Frequency: 300KHz
  • Protections, Alarms and Diagnostics: Over and under voltage, thermal, Phase Motor interrupted Short circuit phase to phase, phase to ground, phase-supply, Univocal indication for each anomaly.
  • Connections: By terminal block. Section of cable up to AWG14
  • Size: 22(H) x 105(L) x 78(W) mm
Add to basket

OS Series Step & Direction 50VDC 8Arms Panel Mount Micro Stepper Drive

R3,068.51

NB: Minimum order quantity is 2 units and if a smaller quantity is required please contact sales@industratech.co.za for your prices.

  • Power Supply Voltage:  From 20Vdc up to 50Vdc
  • Phase Current: From 3Arms up to 8Arms in increments of 0.1Arms
  • Control Mode: Step and Direction. Start/Stop
  • Digital Inputs: 4 optoisolated: STEP, DIRECTION, ENABLE, BOOST Operating from 3V up to 28V at constant current Each one NPN, PNP or Line Drive compatible.
  • Step subdivision: Microstepping. Selectable from full step to 1/128 step
  • STEP Max Frequency: 300KHz
  • Protections, Alarms and Diagnostics: Over and under voltage, thermal, Phase Motor interrupted Short circuit phase to phase, phase to ground, phase-supply, Univocal indication for each anomaly.
  • Connections:By terminal block. Section of cable up to AWG14
  • Size: 29(H) x 105(L) x 78(W) mm
Add to basket

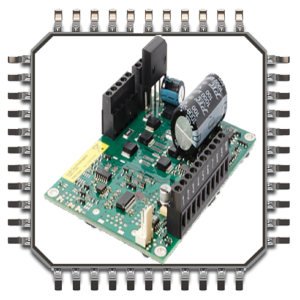

OS Series Step & Direction 90VDC 3Arms Panel Mount Micro Stepper Drive

R2,511.90

NB: Minimum order quantity is 2 units and if a smaller quantity is required please contact sales@industratech.co.za for your prices.

  • Power Supply Voltage:  From 24Vdc up to 90Vdc
  • Phase Current: From 0.8Arms up to 3Arms in increments of 0.1Arms
  • Control Mode: Step and Direction. Start/Stop
  • Digital Inputs: 4 optoisolated: STEP, DIRECTION, ENABLE, BOOST Operating from 3V up to 28V at constant current Each one NPN, PNP or Line Drive compatible.
  • Step subdivision: Microstepping. Selectable from full step to 1/128 step
  • STEP Max Frequency: 300KHz
  • Protections, Alarms and Diagnostics: Over and under voltage, thermal, Phase Motor interrupted Short circuit phase to phase, phase to ground, phase-supply, Univocal indication for each anomaly.
  • Connections: By terminal block. Section of cable up to AWG14
  • Size:18(H) x 105(L) x 78(W) mm
Add to basket

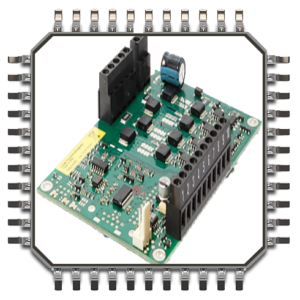

OS Series Step & Direction 36VAC 3Arms Panel Mount Micro Stepper Drive

R2,745.32

NB: Minimum order quantity is 2 units and if a smaller quantity is required please contact sales@industratech.co.za for your prices.

  • Power Supply Voltage:  From 18Vac up to 36Vac
  • Phase Current: From 0.8Arms up to 3Arms in increments of 0.1Arms
  • Control Mode: Step and Direction. Start/Stop
  • Digital Inputs: 4 optoisolated: STEP, DIRECTION, ENABLE, BOOST Operating from 3V up to 28V at constant current Each one NPN, PNP or Line Drive compatible.
  • Step subdivision: Microstepping. Selectable from full step to 1/128 step
  • STEP Max Frequency: 300KHz
  • Protections, Alarms and Diagnostics: Over and under voltage, thermal, Phase Motor interrupted Short circuit phase to phase, phase to ground, phase-supply, Univocal indication for each anomaly.
  • Connections:By terminal block. Section of cable up to AWG14
  • Size:22(H) x 105(L) x 78(W) mm
Add to basket
